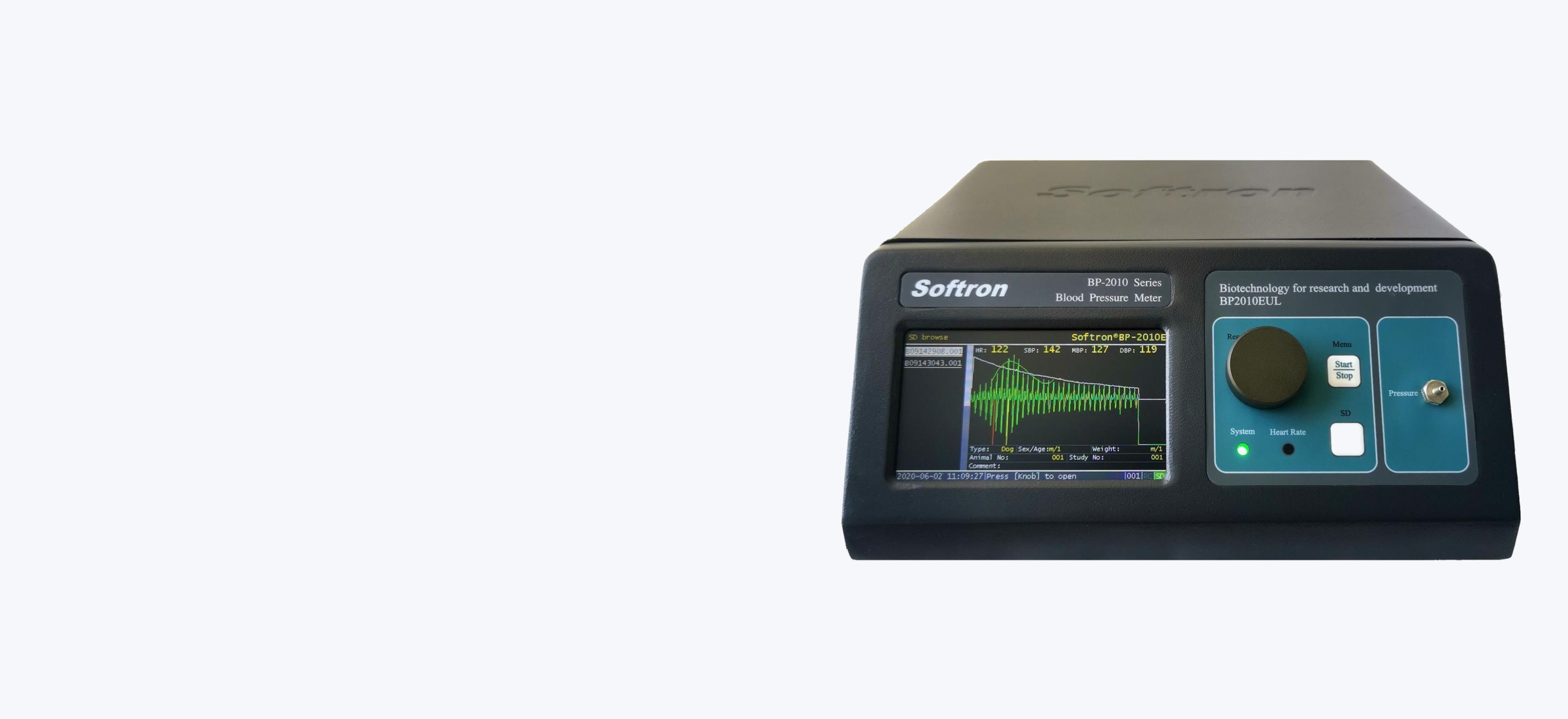

BP-2010E measures blood pressure in larger laboratory animals by the oscillometric method. A high-precision pressure sensor follows the pulse wave so the system can report SBP, MBP, DBP, and heart rate for dogs, monkeys, pigs, rabbits, sheep, guinea pigs, and similar species.
How it measures
BP-2010E uses the oscillometric method with a high-precision pressure sensor. It is intended for larger experimental animals—dogs, monkeys, pigs, rabbits, sheep, guinea pigs, and others—and a range of cuff sizes is available so the cuff can match the limb.
- Oscillometric capture of pulse-wave change
- Species and sizes covered by the cuff set
- One-touch automatic inflation
Operation

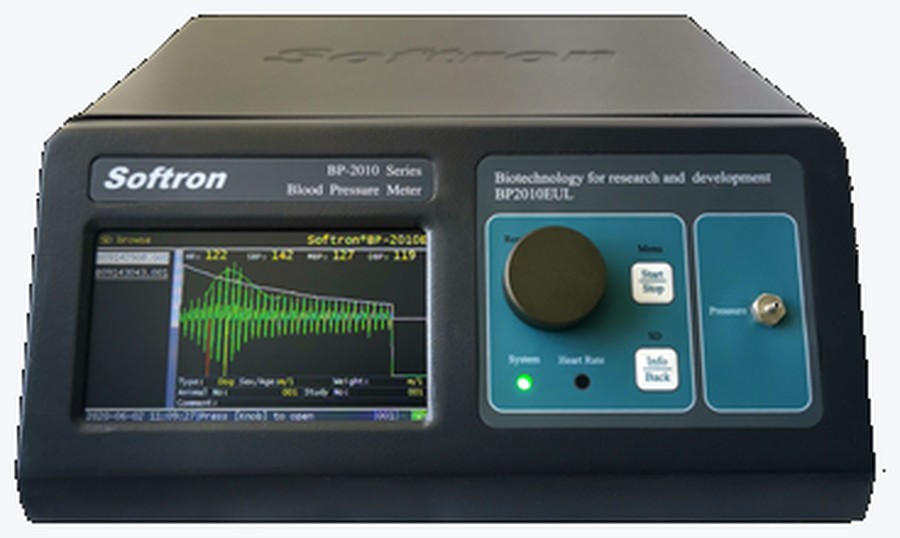

The instrument can run on its own with a 4.3-inch LCD, so readings can be viewed without a computer. After inflation, results are typically available within 10–15 seconds and are stored automatically. Multiple measurements can be averaged for stability. Connected by USB, the software shows the blood-pressure waveform in real time and supports storage, editing, and analysis. Offline work uses the SD card. Printed results carry an MD5 fingerprint for GLP-oriented traceability.
- Automatic pulse-wave stability detection
- Animal ID, weight, sex, and age fields for study records
- Batch export to Excel or image formats
- Timed measurement schedules for intraoperative or repeated readings
Two ways to run
Computer mode
USB connection for live collection, editing, analysis, and report export.
Standalone mode
No computer required; results go to the SD card for later review.
Specifications
| Measurement method | Oscillometric |
|---|---|
| Sensor type | Pressure sensor |
| Measured parameters | SBP, MBP, DBP, HR |
| Maximum pressure | 350 mmHg |
| Maximum heart rate | 600 bpm |
| Power | 110–220 VAC |
| PC connection | USB |
| Data storage | Computer or SD card |
BP-2010E is the current interface and storage update of BP-98E. The measurement principle is unchanged.
Cuff sizes
| Cuff NO.10 | 35–60 mm circumference |
|---|---|
| Cuff NO.11 | 50–75 mm |
| Cuff NO.12 | 75–105 mm |
| Cuff NO.13 | 85–130 mm |
| Cuff #1 | 11.7–18.3 mm |
| Cuff #2 | 17.7–23.6 mm |
| Cuff #3 | 23.6–31.4 mm |
| Cuff #4 | 27.5–36.6 mm |
| Cuff #5 | 31.4–41.9 mm |
| Cuff #6 | 35.3–47.1 mm |
